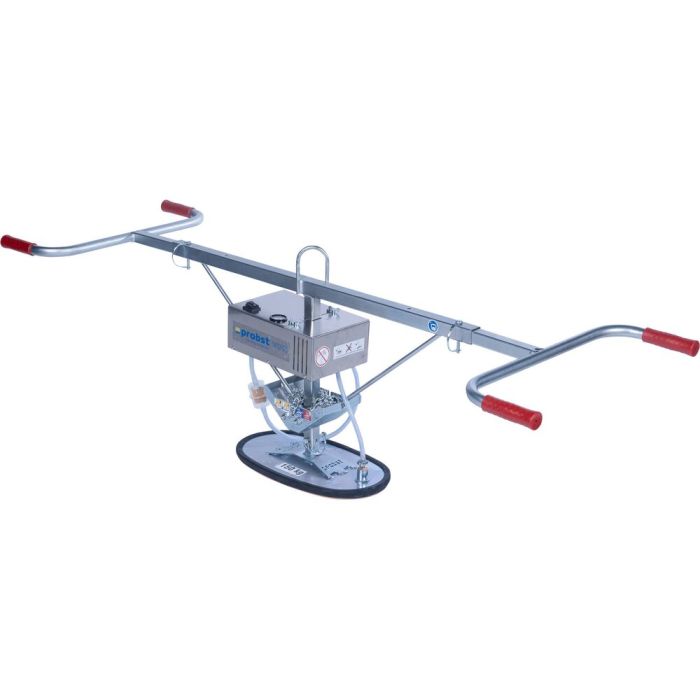

VACUUM-POWER-HANDY VPH 12 volt Vacuum Hand Laying Device

Flexible and powerful hand operated laying device for dense products, such as granite or high quality concrete elements.


Special seal, consisting of 2 components for optimised sealing. Even when the suction plate is sitting on sharp edges for a long time, no permanent marks are left in the seal. Therefore no “foldable rests” are necessary to save guard the seal. Wheel Set VPH-RS can be retrofitted to any VPH device at any time. Thus dense slabs can be installed by just one person.

  • Highly wear-resistant seal.
  • Powered by rechargeable AGM-AKKU 12 V. Special energy saving automatic allows a full day of laying operation without the need of recharging. Battery charger not included.
  • Handle for 2 men operation, handles are height and width adjustable to accomodate with different laying tasks.
  • Including suction plate with 150 kg load capacity.
  • The seal can be exchanged without glue and any tool within 1 minute.
  • Fitted as standard with chain compartment and load securing chain as well as lifting eye for hoist operation.
  • Durable surface protection by galvanizing.

Vacuum pump unit with manometer and battery charging indicator.
Technical data
Metric values:
Working Load Limit/WLL -500 mbar150 kg
Dead Weight16,5 kg
Type of Drive electric/Battery0,02 kW
Dimensions LxWxH590x588x1431 mm
Dimensions oval, LxB440x250 mm
Working Voltage12 V
Battery Capacity7,2 Ah
Imperial values:
Working Load Limit/WLL -500 mbar331 lbs
Dead Weight36 lbs
Type of Drive electric/Battery0,02 kW
Dimensions LxWxH23,25x23,25x56,25 in
Dimensions oval, LxB17,32x9,84 in
Working Voltage12 V
Battery Capacity7,2 Ah
