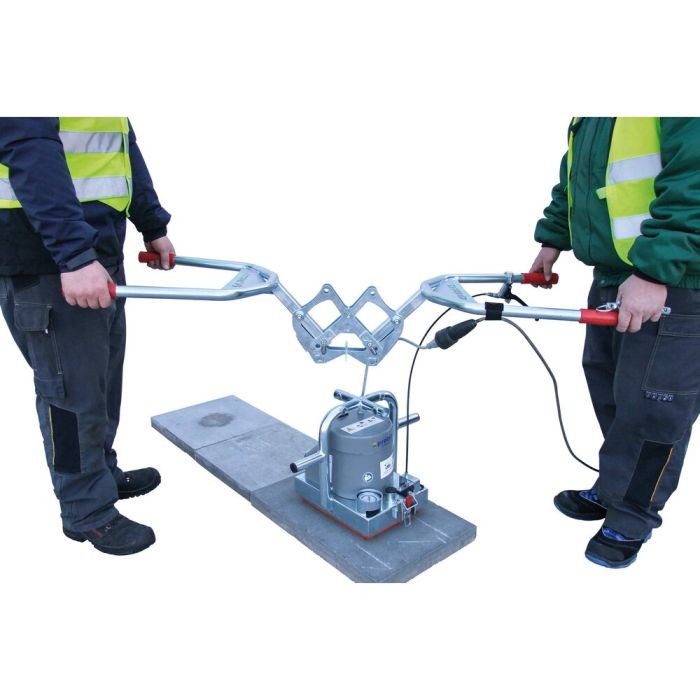

SPEEDY VS-140/200-110 Vacuum Hand Laying Device

With the SPEEDY VS-140/200 manual vacuum laying device, all types of slabs can be laid quickly without joints and, above all, without harming the body.

Availability


SKU
52700019

The powerful single phase powered vacuum turbine also allows the quick and safe handling of very porous material as well as material with exposed aggregate surface. With an integrated suction plate for up to 50 kg and quick change function.
With this new hand laying tool all kinds of slabs can be layed quickly and above all, ergonomically.


Using the quick-change function, all new standard suction plates can be attached in seconds without tools.




  • Can, when combined with the corresponding suction plate and lifting eye VS-EH safely lift and lay elements weighing up to 200 kg.
  • Handles can be rotated 90° by repositioning 2 bolts. This can be of an advantage when switching from crosswise to lengthwise laying of slabs or when the slabs are laid touching a wall.
  • Now with unlockable actuating lever for vacuum release. This double safety device secures the paving material against accidental release.
  • The working load limit with handles is 140 kg.
  • Quick positive suction action.
  • Handles individually height adjustable. Important for users of different heights and for laying steps.
  • Two short handles (in lower position) make easier the taking-off from high stacks of slabs.
  • The handles can be folded down for easy transportation.
  • Light weight design.
  • Durable surface protection by galvanizing.
Technical data
Metric values:
Type of Drive electric/AC1,5 kW
Dimensions LxW300x250 mm
Working Load Limit/WLL -200 mbar200 kg
Dead Weight24 kg
Electric Voltage /AC110 V
Dimensions LxWxH600x500x700 mm
Imperial values:
Type of Drive electric/AC1,5 kW
Dimensions LxW11,81x9,84 in
Working Load Limit/WLL -200 mbar441 lbs
Dead Weight53 lbs
Electric Voltage/AC110 V
Dimensions LxWxH23,5x19,75x27,5 in
